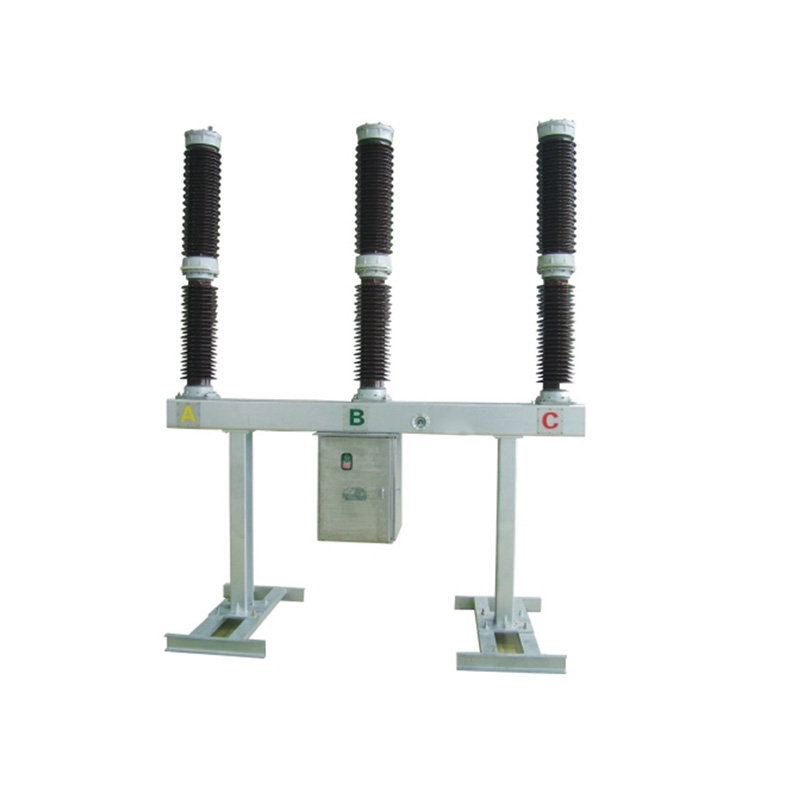

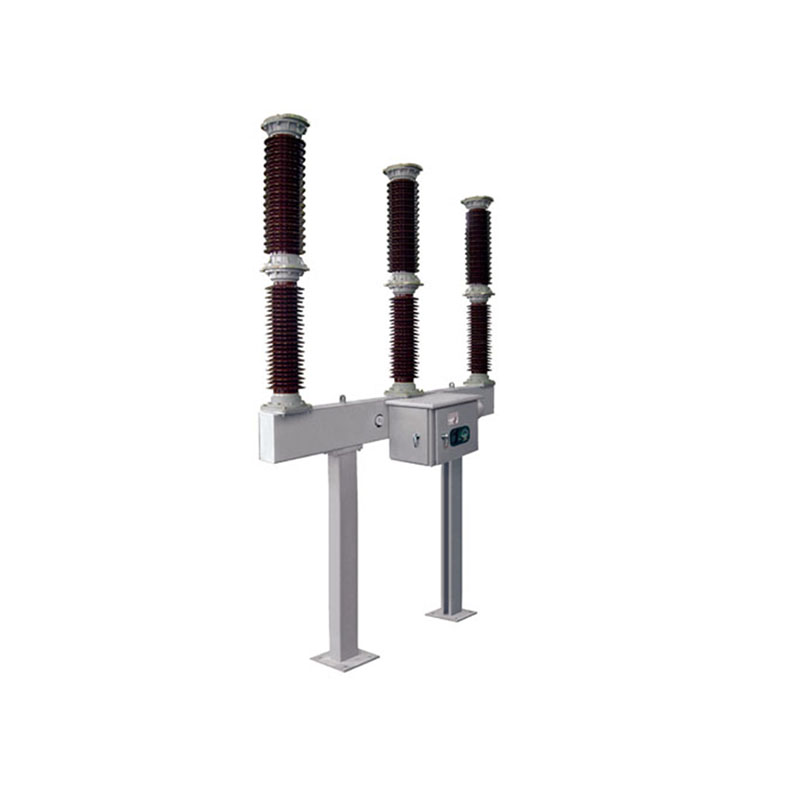

High voltage SF6 circuit breaker

Profile:

LW36A-126/145 high voltage current SF6 breaker is suitable for the areas which current is 50HZ126kV,

and the elevation is under 2500meters,used for turning on/off the electricity system, cutting down the under-load current

and the short-circuit fault circuit, controlling protecting the power equipment and link circuit.



Breakers uses the SF6 gas( the Alpine region use the gas mixture of SF6 and CF4) as the isolate and arc extinguishing medium,

adopt the theory of automatic arc extinguishing,and match the spring operate instruction,

has the advantages of powerful turn on/off ability and lower frequency, higher reliability...etc.



These products have passed the completely test of government high voltage electrical quality monitor center--

Xian high voltage electrical research institution.



The standards of high voltage SF6 circuit breaker:

IEC62271-100  high voltage current breaker

GB1984       high voltage current breaker

GB/T11022    The shared technology requirements of high voltage switch equipment and control equipment standard



Advantages of  high voltage SF6 circuit breaker:

Can be used for the the current system of three phase natural grounded or ungrounded.

Suitable for the alpine region which above is 2500m.

Can work under the lower temperature which is -45



Operating environment:

Use normal environment conditions in accordance with the standard GB/T11022

《The shard technology requirements of high voltage switch equipment and control equipment standard》.

1. The around environment temperature: -45℃~+40℃

2. Elevation: not exceed 2500m (126kV); not exceed 1000m(145kV)

3. Wind speed:≯34m/s

4. Daily temperature difference:≯25℃

5. Sunlight strength:≯0.1w/cm

6. Monthly average relative humidity:≯90%

7. Earthquake acceleration:Level ≯0.2g level;Vertical ≯0.1g

8. Ice thickness:≯10mm

9. Pollution level: Ⅲgrades( creepage distance 25mm/kV) or Ⅳgrades( creepage distance 31mm/kV)

10. Installation : outdoor

Main technology parameters:

No.

Item

Unit

Parameters

1

Rated voltage


126

145

2

Rated power frequency withstand voltage (1min)

Over the  groundphases

kV

230

275

Between the contacts

265

275

3

Rated lightning impulse withstand voltage

Over the groundphases

550

650

Between the contacts

630

650

4

SF6 the power frequency withstand  voltage of 0meter


95

105

5

Rated frequency

Hz

50

50

6

Rated current

A

3150

3150

7

The first coefficient of open pole


1.5

1.5

8

Rated short-circuit on/off current

kA

40

40

9

Rated short-circuit close/open current

100

100

10

Rated shore-time withstand current

40

40

11

Rated peak withstand current

100

100

12

Rated short-circuit continues time


4

4
