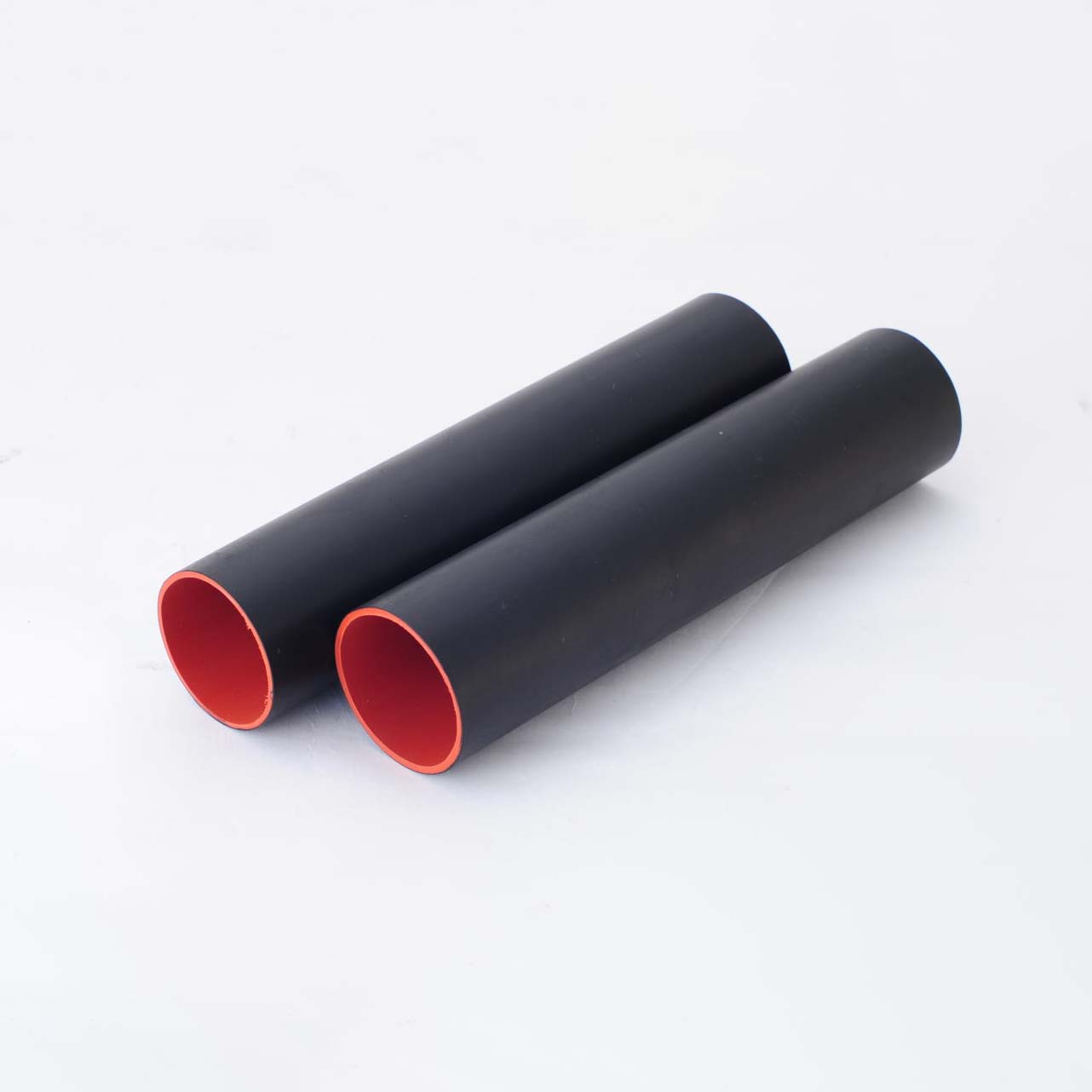

semi-conduct/insulation double layer heat shrinkable tubing(RCSCI)

■semi-conduct/insulation double layer heat shrinkable tubing(RCSCI)■

■ Features/Applications

RCSCI is dual wall heat shrinkable tube is dual wall heat shrinkable tube, inner layer is made from insulation material to provide high insulation external layer is made from semi-conductive materials to provide electric shielding The tubing manufactured with special technolongy is very suitable for applications in power cable joints up to 36kv.

·Two layer

·Minimum shrink temperature: 100℃

·Minimum fully recovered temperature:130℃

Technical Data

Property	Test Method	Typical Data
Inner layer
Tensile strength	ASTM D 2671	≥12Mpa
Elongation at break	ASTM D 2671	≥300%
Water absorption	ISO 62	<0.5%
Volume resistance	IEC 93	≥10¹⁴Ω.cm
Dielectric strength	IEC 243	≥20KV
Density	ASTE D 257	1.1G/CM²
External layer
Tensile strength	ASTM D 638	≥2Mpa
Elongation at break	ASTM D 638	≥300%
Water absorption	ISO 62	<0.5%
Volume resistance	IEC 93	<10⁴.cm
Density	ASTM D 257	1.2g/cm³

Product Dimensions

Size mm	As supplied (mm)	After recovered(mm)		Iength mm
Size mm	Inside diameter(Min)	Inside diameter(Min)	Total wall thickness(Min)	Iength mm
SCI-30/11	≥30	≤11	5	300~1200
SCI-35/13	≥35	≤13	5
SCI-45/16	≥45	≤16	5
SCI-55/20	≥55	≤20	5
SCI-65/25	≥65	≤25	5
SCI-88/30	≥85	≤30	7
SCI-100/38	≥100	≤38	7
SCI-120/45	≥120	≤45	7
