■ Features/Applications
Outstanding physical, chemical and electrical properties make it easily to install and identify to ground conductors, Free form environment harmful substance.
·Operating temperature:-55℃to+135℃
·Minimum shrink temperature:80℃
·Minimum fully recovery temperature:100℃

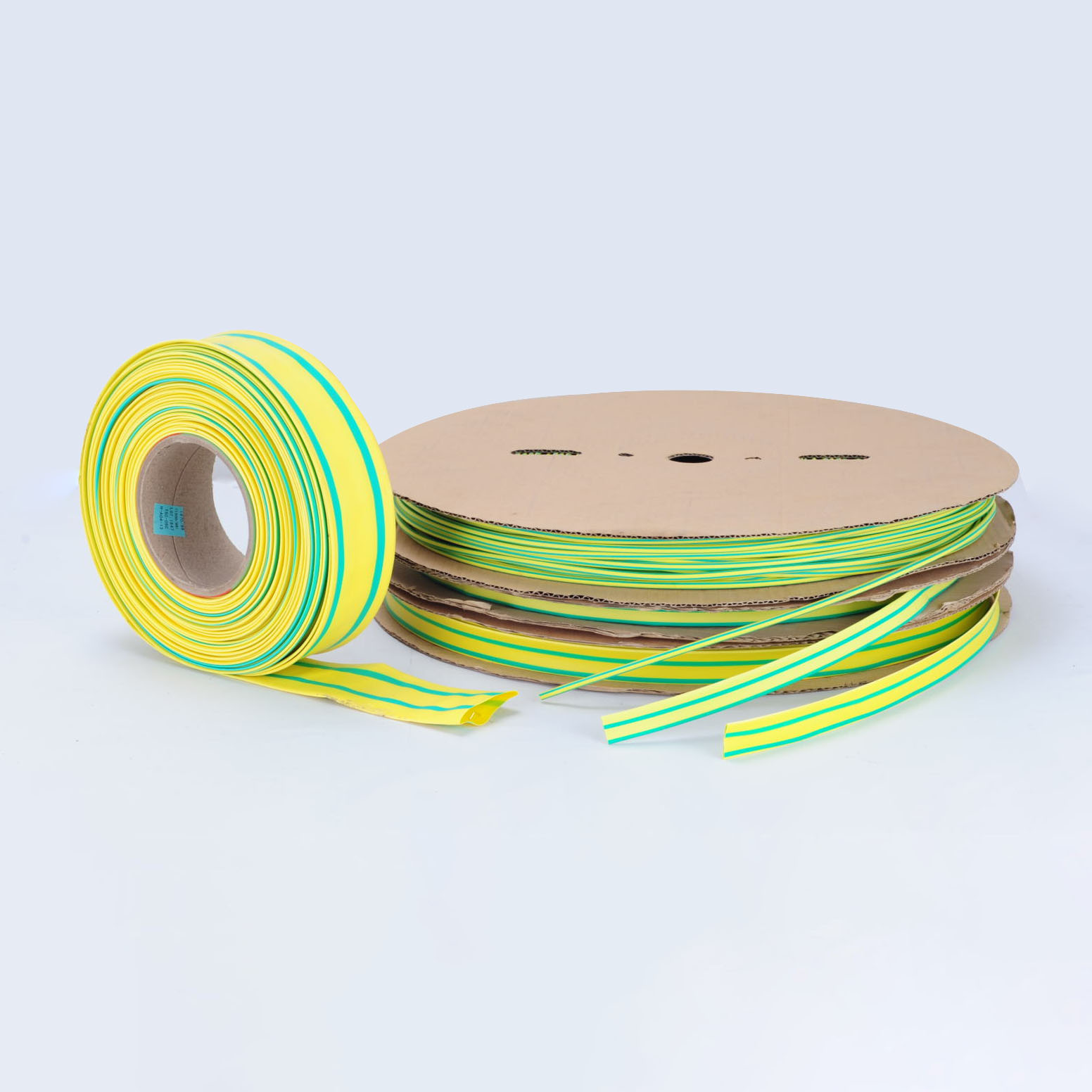

·Standard color: Yellow&Green striped
|
Property
|
Test Method
|
Typical Data
|
|
Tensile strength
|
ASTM D 2671
|
14Mpa
|
|
Elongation at break
|
ASTM D 2671
|
800%
|
|
Tensile strength after aging(175℃/168hrs)
|
ASTM D 2671
|
14Mpa
|
|
Elongation after aging(175℃/168hrs)
|
ASTM D 2671
|
350%
|
|
Flammability
|
UL 224 VW-1
|
Pass
|
|
Heat shock(250℃/4hrs)
|
ASTM D 2671
|
No Cracking
|
|
Cold bend test(-55℃/4hrs)
|
ASTM D 2671
|
No Cracking
|
|
Dielectric strength
|
ASTM D 150
|
20kv/mm
|
|
Volume resistance
|
ASTM D 876
|
1014Ω.cm
|
|
Copper corrosion
|
UL 224
|
Pass
|
|
Water absorption
|
ASTM D 570
|
0.12%
|
|
Chemical resistance
|
ASE-AMS-DTL-23053/5
|
Pass
|
|
Longitudinal shrinkage
|
UL 224
|
0±5%
|
|
Eccentricity
|
UL 224
|
>30%
|
|
Normal size
|
As supplied (mm)
|
After recovered(mm)
|
Standard length(m/spool)
|
|
(mm)
|
(inch)
|
Inside diameter
|
Inside diameter
(Max
|
Wall thickness
(Min)
|
|
1.6/0.5
|
1/16
|
1.6
|
0.5
|
0.51
|
200
|
|
2.4/0.8
|
3/32
|
2.4
|
0.8
|
0.51
|
200
|
|
3.2/1.0
|
1/8
|
3.2
|
1.0
|
0.55
|
200
|
|
4.8/1.5
|
3/16
|
4.5
|
1.5
|
0.60
|
100
|
|
6.4/2.0
|
1/4
|
6.4
|
2.0
|
0.65
|
100
|
|
9.5/3.0
|
3/8
|
9.5
|
3.0
|
0.75
|
100
|
|
12.7/4.0
|
1/2
|
12.7
|
4.0
|
0.75
|
50
|
|
19.1/6.0
|
3/4
|
19.1
|
6.0
|
0.85
|
50
|
|
25.4/8.0
|
1
|
25.4
|
8.0
|
1.00
|
50
|
|
39/13
|
11/2
|
39.0
|
13.0
|
1.15
|
50
|
|
As supplied(mm)
|
After recovered(mm)
|
Standard
length(m/spool)
|
|
Inside diameter(Min)
|
Inside diameter(Min)
|
Wall thickness(Min)
|
|
RCYG-1.0
|
0.65
|
0.28±0.10
|
200
|
|
RCYG-1.5
|
0.85
|
0.32±0.10
|
200
|
|
RCYG-2.0
|
1.00
|
0.40±0.10
|
200
|
|
RCYG-2.5
|
1.30
|
0.40±0.10
|
200
|
|
RCYG-3.0
|
1.50
|
0.40±0.10
|
200
|
|
RCYG-3.5
|
1.80
|
0.42±0.10
|
200
|
|
RCYG-4.0
|
2.00
|
0.45±0.10
|
200
|
|
RCYG-4.5
|
2.30
|
0.50±0.10
|
100
|
|
RCYG-5.0
|
2.50
|
0.55±0.10
|
100
|
|
RCYG-6.0
|
3.00
|
0.55±0.10
|
100
|
|
RCYG-7.0
|
3.50
|
0.55±0.10
|
100
|
|
RCYG-8.0
|
4.00
|
0.60±0.10
|
100
|
|
RCYG-9.0
|
4.50
|
0.60±0.10
|
100
|
|
RCYG-10
|
5.0
|
0.60±0.10
|
100
|
|
RCYG-11
|
5.50
|
0.60±0.10
|
100
|
|
RCYG-12
|
6.00
|
0.65±0.10
|
100
|
|
RCYG-13
|
6.50
|
0.65±0.10
|
100
|
|
RCYG-14
|
7.00
|
0.70±0.10
|
100
|
|
RCYG-15
|
7.50
|
0.75±0.10
|
100
|
|
RCYG-16
|
8.00
|
0.75±0.10
|
100
|
|
RCYG-17
|
8.50
|
0.75±0.10
|
100
|
|
RCYG-18
|
9.00
|
0.80±0.15
|
100
|
|
RCYG-20
|
10.00
|
0.82±0.15
|
100
|
|
RCYG-22
|
11.00
|
0.82±0.15
|
100
|
|
RCYG-25
|
12.50
|
1.00±0.15
|
50
|
|
RCYG-28
|
14.00
|
1.00±0.15
|
50
|
|
RCYG-30
|
15.00
|
1.05±0.15
|
50
|
|
RCYG-35
|
17.50
|
1.15±0.15
|
50
|
|
RCYG-40
|
20.00
|
1.20±0.15
|
50
|
|
RCYG-45
|
22.50
|
1.20±0.15
|
25
|
|
RCYG-50
|
15.00
|
1.20±0.15
|
25
|
|
RCYG-60
|
30.00
|
1.50±0.20
|
25
|
|
RCYG-70
|
35.00
|
1.60±0.20
|
25
|
|
RCYG-80
|
40.00
|
1.70±0.20
|
25
|
|
RCYG-90
|
45.00
|
1.90±0.20
|
25
|
|
RCYG-100
|
50.00
|
2.10±0.20
|
25
|
|
