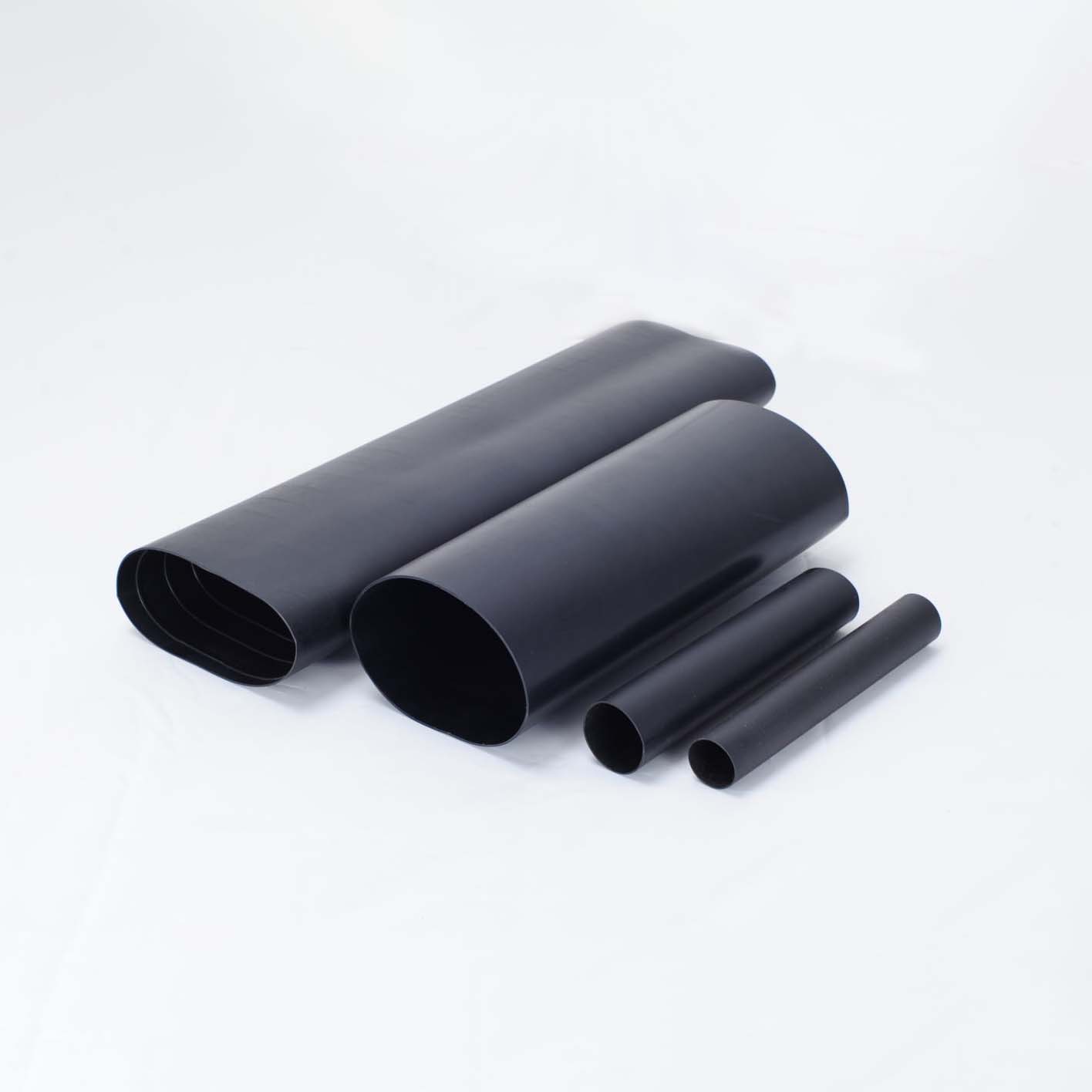

■Stress Control Heat Shrinkable Tubing(RCYL)■
|
It is used in the high-voltage power cable accessories to take the effect of sieress control
Property
|
Typical data
|
Propery
|
Typical data
|
Hatdness
|
80(shoea A)
|
Dielectric c9onstant
|
<2.0-2.5
|
Tensile strength
|
10Mpa
|
Dielectric ullage
|
2.5
|
Elongation at break
|
300%
|
Shrink temperature
|
12.-140℃
|
Volume resistance
|
1×1014Ω.cm
|
Shrink ration(dia)
|
250%
|
Dielectric strength
|
≥20KV/mm
|
Longitudinal shrinkage
|
±5%
|
Size mm
|
As supplied
|
After recovered
|
Length
|
Color
|
Inside diameter(Min)
|
Inside diameter(Max)
|
wall thickness(Min)
|
RCYL-30/10
|
30±1
|
<10
|
2.0±0.2
|
100
|
Black
|
RCYL-35/14
|
35±1
|
<14
|
RCYL-42/18
|
42±1
|
<18
|
RCYL-50/20
|
50±1
|
<20
|
RCYL-50/20
|
50±1
|
<20
|
2.5±0.2
|
RCYL-60/25
|
60±1
|
<25
|
RCYL-70/30
|
70±1
|
<30
|
|
