■ Features/Applications

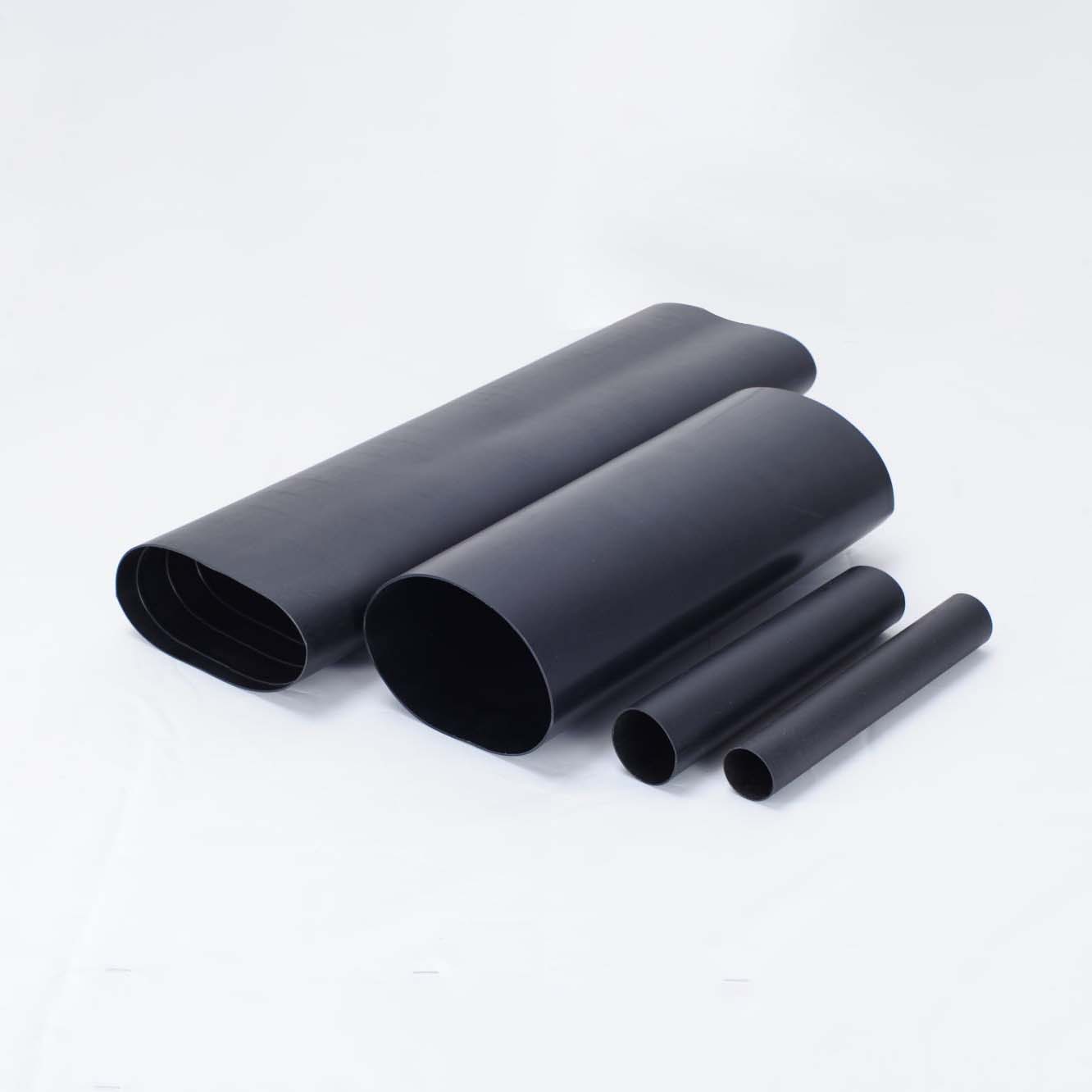

RCMW is medium wall heat shrinkable tubing with hot meit adhesive, having properties of excellent insulating, environmental sealing, and resistant to impact and abrasion, it is designed for applications to seal and protect electrical splices, cable terminations and joints where electrical insulation and water proof are required,3:1 shrink ratio allows it easily over irregular shape and large connectors.
·Resistant to UV-radiation
·High electrical insulation
·Superior mechanical property
·Minimum fully recovery temperature:120℃
·Standard color: Black
|
property
|
Test Method
|
Typical Data
|
|
Operating temperature
|
IEC216
|
-50℃to-10℃
|
|
Tensile strength
|
ASTM D 2671
|
≥14Mpa
|
|
Tensile strength after aging(150℃/168hrs)
|
ASTM D 2671
|
≥12Mpa
|
|
Elongation at break
|
ASTM D 2671
|
≥400%
|
|
Elongation at break after aging(150℃/168hrs)
|
ASTM D 2671
|
≥300%
|
|
Density
|
ASTM D 792
|
1.05g/cm3
|
|
Longitudinal shrinkage
|
UL 224
|
0to-10%
|
|
Dielectric strength
|
IEC 243
|
≥20kv/mm
|
|
Volume resistance
|
IEC 93
|
>1014Ω.cm
|
|
Eccentricity
|
ASTM D 2671
|
＜30%
|
|
Copper stability
|
ASTM D 2671
|
Pass
|
|
Resistance to stress cracking(50℃)
|
ASTM D 1693
|
No cracking
|
|
Water absorption(23℃/14days)
|
ISO 62
|
＜0.15%
|
|
Property
|
Test Method
|
Typical Data
|
|
Water absorption
|
ISO 62
|
<<0.2%
|
|
Softening point
|
ASTM D E28
|
85℃
|
|
Peel strength(PE)
|
DIN 30672
|
4N/cm
|
|
Copper stability
|
ASTM D 2671
|
Non-corrosive
|
|
Resistance to fungus and decay
|
ISO 846
|
pass
|
|
Normal size(mm)
|
As supplied(mm)
|
After recovered(mm)
|
Tube shape
|
Standard length(m.pc)
|
|
Inside diameter(Min)
|
Inside diameter(Min)
|
Wall thickness(Min)
|
|
RCMW-8/3
|
8
|
2
|
1.7
|
O
|
1.22
|
|
RCMW-12/3
|
12
|
3
|
2.0
|
O
|
1.22
|
|
RCMW-16/5
|
16
|
5
|
2.2
|
O
|
1.22
|
|
RCMW-19/5
|
19
|
5
|
2.5
|
O
|
1.22
|
|
RCMW-22/6
|
22
|
6
|
2.5
|
O
|
1.22
|
|
RCMW-28/6
|
28
|
6
|
2.5
|
O
|
1.22
|
|
RCMW-33/8
|
33
|
8
|
2.5
|
O
|
1.22
|
|
RCMW-40/12
|
40
|
12
|
2.5
|
O
|
1.22
|
|
RCMW-55/16
|
55
|
16
|
2.8
|
O
|
1.22
|
|
RCMW-75/19
|
65
|
19
|
3.0
|
O
|
1.22
|
|
RCMW-75/22
|
75
|
22
|
3.0
|
O
|
1.22
|
|
RCMW-85/25
|
85
|
15
|
3.0
|
O
|
1.22
|
|
RCMW-95/25
|
95
|
15
|
3.0
|
O
|
1.22
|
|
RCMW-115/34
|
115
|
34
|
3.0
|
O
|
1.22
|
|
RCMW-140/42
|
140
|
42
|
3.0
|
O
|
1.22
|
|
RCMW-160/50
|
160
|
50
|
3.0
|
O
|
1.22
|
|
RCMW-180/58
|
180
|
58
|
3.0
|
O
|
1.22
|
|
RCMW-205/65
|
205
|
65
|
3.0
|
O
|
1.22
|
Cutting pieces are available on request,
Tube shaper＂O＂：Round or Oval＂－＂：Flat
|
