Brief  instruction:

Medium voltage switchgear complete equipment is the voltage grade of 3~35kV electrical equipment,

products in line with the national standard GB 3906-2006 "3.6kV~40.5kV AC metal closed switchgear and control equipment",

mainly used for opening and closing stations, substations to accept and distribute electric energy.

Product technical paramters and external dimension:

Medium voltage switch complete equipment is the voltage grade of 3~35kV electrical equipment,

products in line with the national standard GB 3906-2006 "3.6kV~40.5kV AC metal closed switchgear and control equipment",

mainly used for opening and closing stations, substations to accept and distribute electric energy.

Application:

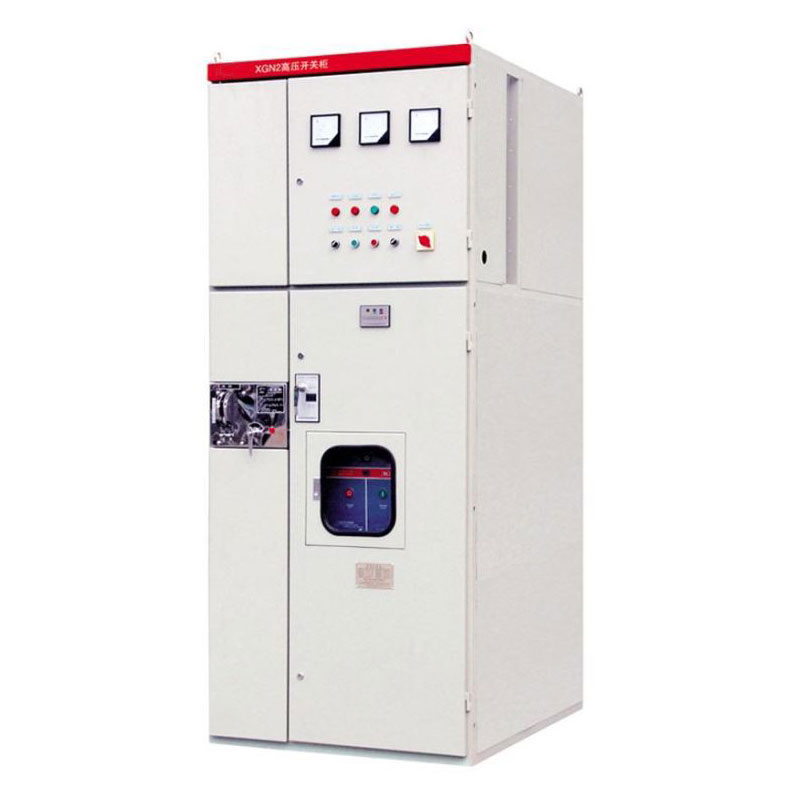

XGN2-12 box type fixed metal closed switch equipment( medium voltage switchgear), cabinet body frame is welded by Angle steel,

cabinet is divided into circuit breaker room, bus room, cable room, electrical break room, etc .

Features:

 Ambient temperature: upper limit +40℃, lower limit -25℃;

Altitude:altitude within 1000m

Relative temperature: daily average value is no more than 95%, monthly average value is no more than 90%

Earthquake intensity: less than 8 degrees.

Ambient:no fire,explosion hazard,contamination level below level 3,chemical damage, or violent shaking.

Technical parameter:
