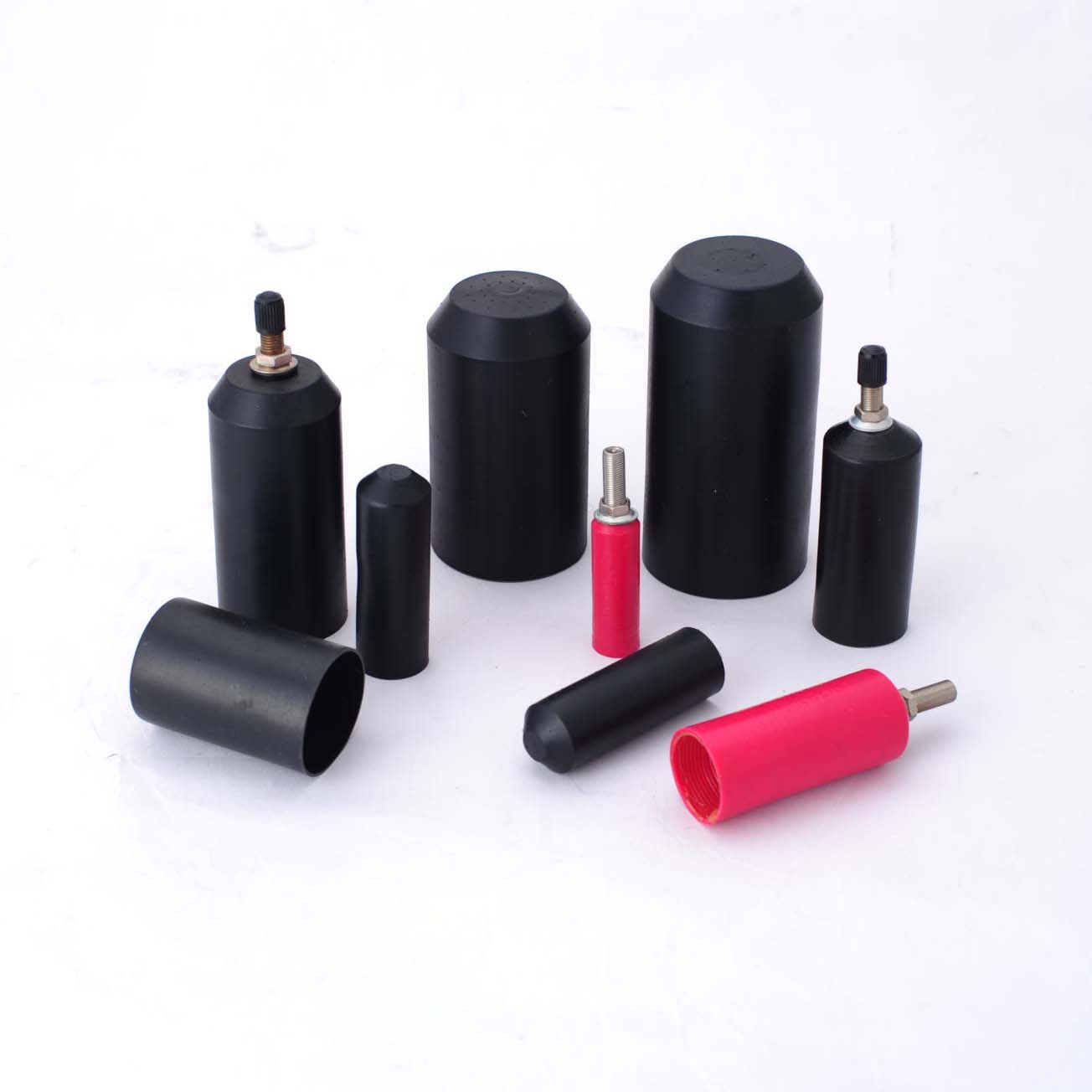

Heat Shrinkable Cable End Cap(RCEC)

■Heat Shrinkable Cable End Cap(RCEC)■

RECD offers an economical means of sealing the and of power cable with a completely watertight seal The intenal surface of the and cap has a layer of spiral coated hot melt adhesive which retains its flexible properties after recovery RCED is recommended for application both in open air and on underground power distribution calbles with PVC Lead or XLPE sheaths.

·Effectively offering protection against oxidation ozone UV-radiation etc

·Coated with hot melt adhesive to ensure environment seal

·Easily to fit into the cable and

·Minimum fully shrink temperature:120℃

Technical Data

Property	Test Method	Typical Data
Operating temperature	IEC 216	-55℃ to+110℃
Tensile strength	ASTM D 638	>14Mpa
Elongation at break	ASTM D 638	>400%
Density	ASTM D 792	1.05
Elongation at break after aging	150℃/168hrs	>300%
Dielectric strength	IEC 243	>15kv/mm
Volume resistance	IEC 93	>10¹⁴Ω.cm

Product Dimensions

Size mm	As supplied(mm)	After recovered(mm)				Cable diameter(mm)
Size mm	D(Min)	D(Min)	A(±10%)	L(±10%)	Dw(±5%)	Cable diameter(mm)
RCEC-12/4	12	4.0	15	40	2.2	4-10
RCEC-14/5	14	5.0	18	45	2.2	5-12
RCEC-20/6	20	6.0	25	55	2.8	6-16
RCEC-25/8.5	25	8.5	30	68	2.8	10-20
RCEC-35/16	35	16.0	35	83	3.3	17-30
RCEC-40/15	40	15.0	40	83	3.3	18-32
RCEC-55/26	55	26.0	50	103	3.5	28-48
RCEC-75-36	75	36.0	55	120	4.0	45-68
RCEC-100/52	100	52.0	70	140	4.0	55-90
RCEC-120/60	120	60.0	70	150	4.0	65-110
RCEC-145/60	145	60.0	70	150	4.0	70-130
RCEC-160/82	160	82.0	70	150	4.0	90-150
RCEC-200/90	200	90.0	70	150	4.2	100-180
