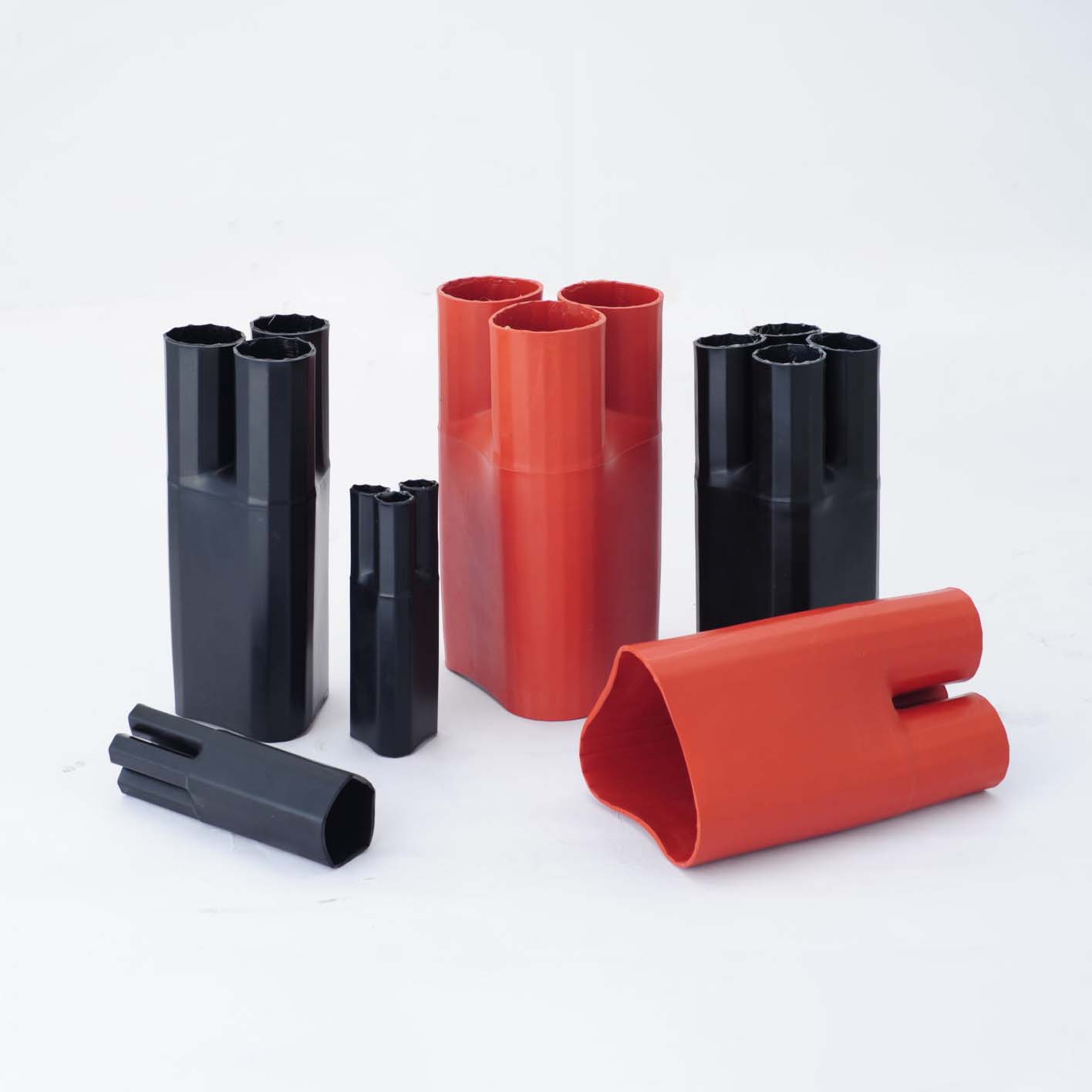

Heat Shrinkable Breakout(RCZT)

■Heat Shrinkable Breakout(RCZT)■
It is used in the branch of cable core for insula tion and oil separation sealing protection
Product Dimensions

Specifi-cation

As supplied After recovered
Branch Root 支Branch Root
I.D Wall thick
ness
Length 		I.D

Wall thick
ness


Length 		I.D
Wall thick
ness
Length 		I.D Wall thick
ness
Length
2ZT1-41/18 ≥18 1.2 42 ≥41 2.2 65 ≤5.3 2.3±0.3 45 ≤19 2.4±0.3 68
2ZT2-56/22 ≥22 1.4 44 ≥56 2.3 78 ≤8.5 2.3±0.3 47 ≤24 2.5±0.3 81
2ZT3-68/27 ≥27 1.7 50 ≥68 2.8 95 ≤14 2.6±0.3 53 ≤38 3.2±0.3 97
3ZTOO-42/16 ≥16 1.8 50 ≥42 2.0 75 ≤5.5 2.6±0.3 53 ≤20 3.2±0.3 78
3ZTO-50/24 ≥24 2.0 50 ≥50 2.1 100 ≤8.0 3.2±0.3 53 ≤25 3.5±0.3 103
3ZT1-75/32 ≥32 2.1 68 ≥75 2.5 122 ≤10 3.4±0.3 71 ≤35 4.0±0.3 125
3ZT2-85/40 ≥40 2.2 75 ≥85 2.8 125 ≤15 3.5±0.3 78 ≤41 4.2±0.3 128
3ZT3-110/48 ≥48 2.3 80 ≥110 2.5 125 ≤17 3.7±0.3 83 ≤50 4.2±0.3 128
3ZT4-120/55 ≥55 2.7 80 ≥120 3.0 135 ≤22 4.3±0.3 83 ≤55 4.3±0.3 138
4TZ0-32/11 ≥11 2.0 42 ≥32 2.5 90 ≤5.0 2.4±0.3 45 ≤16 3.0±0.3 93
4ZT1-45/16 ≥16 2.1 55 ≥45 2.6 95 ≤6.0 2.8±0.3 58 ≤20 3.5±0.3 93
4ZT2-60/25 ≥25 2.2 63 ≥60 2.7 110 ≤8.0 3.6±0.3 66 ≤27 3.6±0.3 113
4ZT3-70/30 ≥30 2.2 73 ≥70 2.8 120 ≤11 3.6±0.3 76 ≤33 3.6±0.3 123
4ZT4-85/37 ≥37 2.2 75 ≥85 2.7 125 ≤12 3.6±0.3 78 ≤39 3.7±0.3 128
5ZTO-38/12 ≥12 1.7 40 ≥38 2.4 75 ≤4.0 2.8±0.3 43 ≤18 3.2±0.3 78
5ZT1-53/15 ≥15 2.2 75 ≥53 2.5 90 ≤6.0 3.4±0.3 78 ≤25 3.4±0.3 93
5ZT2-80/26 ≥26 2.3 80 ≥80 2.5 100 ≤9.0 3.4±0.3 83 ≤38 3.4±0.3 103
5ZT3-92/30 ≥30 2.3 75 ≥92 2.5 105 ≤12 3.5±0.3 78 ≤42 3.6±0.3 108
