■ Features/Applications

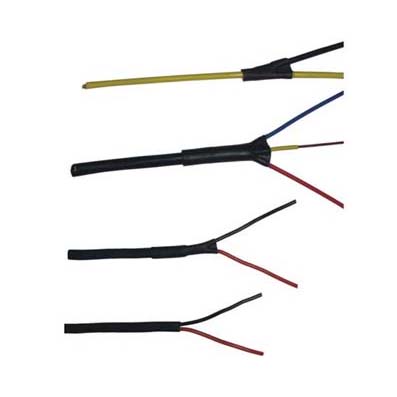

Manufacfured by co-extrusion of polyolefin and hot melt Adhesive Designed to provide excellent property of both insulation widely used to protect auto against water and moisture.
·Operating temperature:-45℃to+125℃
·Minimum shrink temperature:80℃
·Minimum fully recovery temperature:120℃
·Standard color: Black Special cclor: Red Blue white yellow
|
Property
|
Test Method
|
Typical Data
|
|
Tensile strength
|
ASTM D 2671
|
>10.4Mpa(min)
|
|
Tensile strength after aging(158℃/168hrs)
|
ASTM D 2671
|
Remains70%
|
|
Elongation at break
|
ASTM D 2671
|
>300%(min)
|
|
Elongation after aging(158℃/168hrs)
|
ASTM D 2671
|
100%(min)
|
|
Longitudinal shrinkage
|
Ul 224
|
0to-10%
|
|
Heat shock
|
250℃,4hrs
|
No Cracking no dropping
|
|
Cold bend(-30℃/1hr)
|
ASTM D 2671
|
No Cracking
|
|
Voltage withstand(AC2500v/60 seconds)
|
ASTM D 2671
|
No cracking
|
|
Volume resistance
|
ASTM D 876
|
1014Ω.cn(min)
|
|
Flammability
|
ASE-AMS-DTL-32053/4
|
Seif-extinguish in 30sec
|
|
Copper corrosion(158℃/168hrs)
|
UL 224
|
Pass
|
|
Water absorption
|
ASTM D 570
|
<0.5%
|
|
Normal size
|
As supplied(mm)
|
After recovered(mm)
|
Standard length(m)
|
Standard length(m/spool)
|
|
(mm)
|
(inch)
|
Inside diameter(min)
|
Inside diameter
(max)
|
Total wall thickness
(min)
|
Adhesive thickness
(Now)
|
RCDW Adhesive-lined tubing 3:1
|
3/1
|
1/8
|
3.0
|
1.0
|
1.00
|
0.5
|
1.22
|
200
|
|
4.8/1.5
|
3/16
|
4.8
|
4.5
|
1.00
|
0.5
|
1.22
|
100
|
|
6/2
|
1/4
|
6.0
|
2.0
|
1.00
|
0.5
|
1.22
|
100
|
|
9/3
|
3/8
|
9.0
|
3.0
|
1.40
|
0.6
|
1.22
|
50
|
|
12/4
|
1/2
|
12.0
|
4.0
|
1.60
|
0.8
|
1.22
|
25
|
|
19/6
|
3/4
|
19.0
|
6.0
|
2.15
|
0.8
|
1.22
|
25
|
|
24/8
|
1
|
24.0
|
8.0
|
2.40
|
1.0
|
1.22
|
25
|
|
30/10
|
11/4
|
30.0
|
10.0
|
2.40
|
1.0
|
1.22
|
25
|
|
40/13
|
11/2
|
40.0
|
13.0
|
2.40
|
1.0
|
1.22
|
25
|
|
50/19
|
2
|
50.0
|
19.0
|
2.40
|
1.0
|
1.22
|
25
|
RCDW Adhesive-lined tubing 4:1
|
4/1
|
3/16
|
4.0
|
1.0
|
1.00
|
0.5
|
1.22
|
100
|
|
6/1.5
|
1/4
|
6.0
|
1.5
|
1.00
|
0.5
|
1.22
|
100
|
|
8/2
|
5/16
|
8.0
|
2.0
|
1.00
|
0.5
|
1.22
|
50
|
|
12/3
|
1/2
|
12.0
|
3.0
|
1.40
|
0.6
|
1.22
|
25
|
|
16/4
|
5/8
|
16.0
|
4.0
|
1.60
|
0.8
|
1.22
|
25
|
|
24/6
|
1
|
24.0
|
6.0
|
2.15
|
0.8
|
1.22
|
25
|
|
32/8
|
11/4
|
32.0
|
8.0
|
2.40
|
1.0
|
1.22
|
25
|
|
52/13
|
2
|
52.0
|
13.0
|
2.40
|
1.0
|
1.22
|
-
|
·Special size cutting pieces are available on request Halogen free heat shrinkable adhesive-lined tubing is available on request
|
