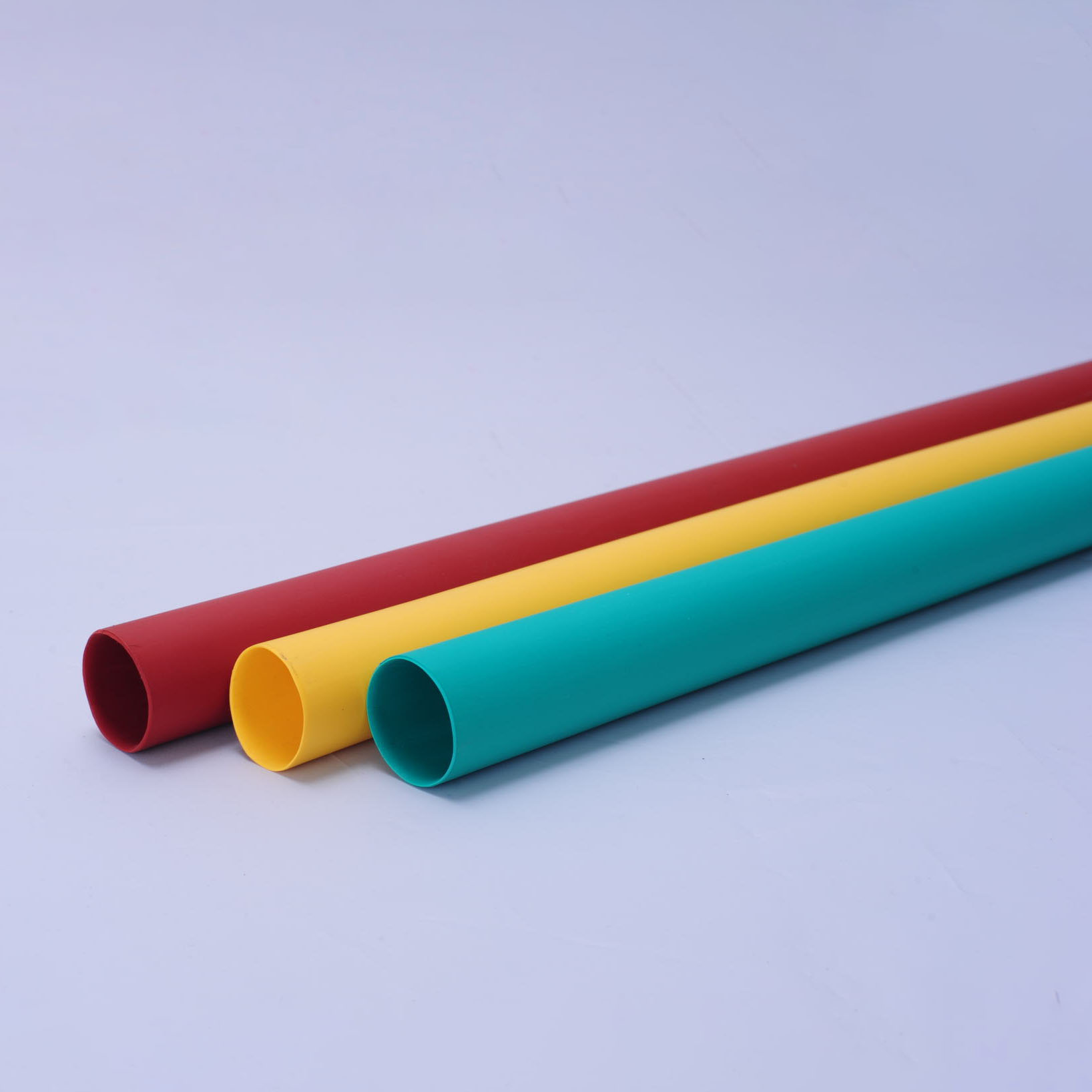

Bus-bar Insulation Heat Shrinkable Tubing(RCMPG)

■Bus-bar Insulation Heat Shrinkable Tubing(RCMPG)■

■ Product character
·High fire resistance: the oxygen index is more than 30;
·Fine heat resistance: the operating temperature can reach to 105℃ still can run stably; ·Fine low-temperature: the product isnot fragile and cracking in the temperature environment of -45℃
·Easy installation: the product can be easily contracted on the bus bar only by bake oven or spray gun.

Technical Data

Property

Typical data

Property

Typical data

share A hardness

<80

Density

1.15×103

Water absorption

<0.5

Complete shrink temperature

130±5

Radial shrinkage rate

>50

Longitudinal shrinkage rate

<5.0

Tensile strength

>12

Breaking extensibility

>400

Breakdown strength

≥23

Volume resistance coefficient

>1×1014

Oxygen lndex

≥30

Eccentricity

<30

RCMPGProduct Dimensions


Size mm


As Supplied I.D mm


After recovered I.D mm

As Supplied Wall thickness mm

After recovered Wall thickness mm

Length

Color

RCMPG-25/10

>25

<10

1.0~1.5

2.5~3.5

1M/pc

Red green yellow purple

RCMPG-30/12

>30

<12

1.0~1.5

2.5~3.5

RCMPG-40/16

>40

<16

1.0~1.5

2.5~3.5

RCMPG-50/20

>50

<20

1.0~1.5

2.5~3.5

RCMPG-65/25

>65

<25

1.0~1.5

2.5~3.5

RCMPG-75/30

>75

<30

1.0~1.5

2.5~3.5

RCMPG-85/35

>85

<35

1.0~1.5

2.5~3.5

RCMPG-100/40

>100

<40

1.0~1.5

2.5~3.5

RCPMG-120/50

<120

<50

1.0~1.5

2.5~3.5

RCMPG-150/60

>150

<60

1.0~1.5

2.5~3.5

RCMPG-LProduct Dimensions


Size mm

As Supplied I.D mm

After recovered I.D mm

As Supplied Wall thickness mm


After recovered Wall thickness mm

Length

Color

RCMPG-L-20/10

20±1

10±1

1.1±0.1

2.2±0.2

25M/pc

Red green yellow purple

RCMPG-L-25/12

25±1

12±1

1.1±0.1

2.2±0.2

RCMPG-L-30/16

30±1

15±1

1.1±0.1

2.2±0.2

RCMPG-L-40/20

40±1

20±1

1.1±0.1

2.2±0.2

RCMPG-L-50/25

50±1

25±1

1.1±0.1

2.2±0.2

RCMPG-L-60/30

60±1

30±1

1.1±0.1

2.2±0.2

RCMPG-L-70/35

70±1

35±1

1.1±0.1

2.2±0.2

RCMPG-L-80/40

80±1

40±1

1.1±0.1

2.2±0.2

RCPMG-L-100/50

100±1

50±1

1.1±0.1

2.2±0.2

RCMPG-L-120/60

120±1

60±1

1.1±0.1

2.2±0.2
