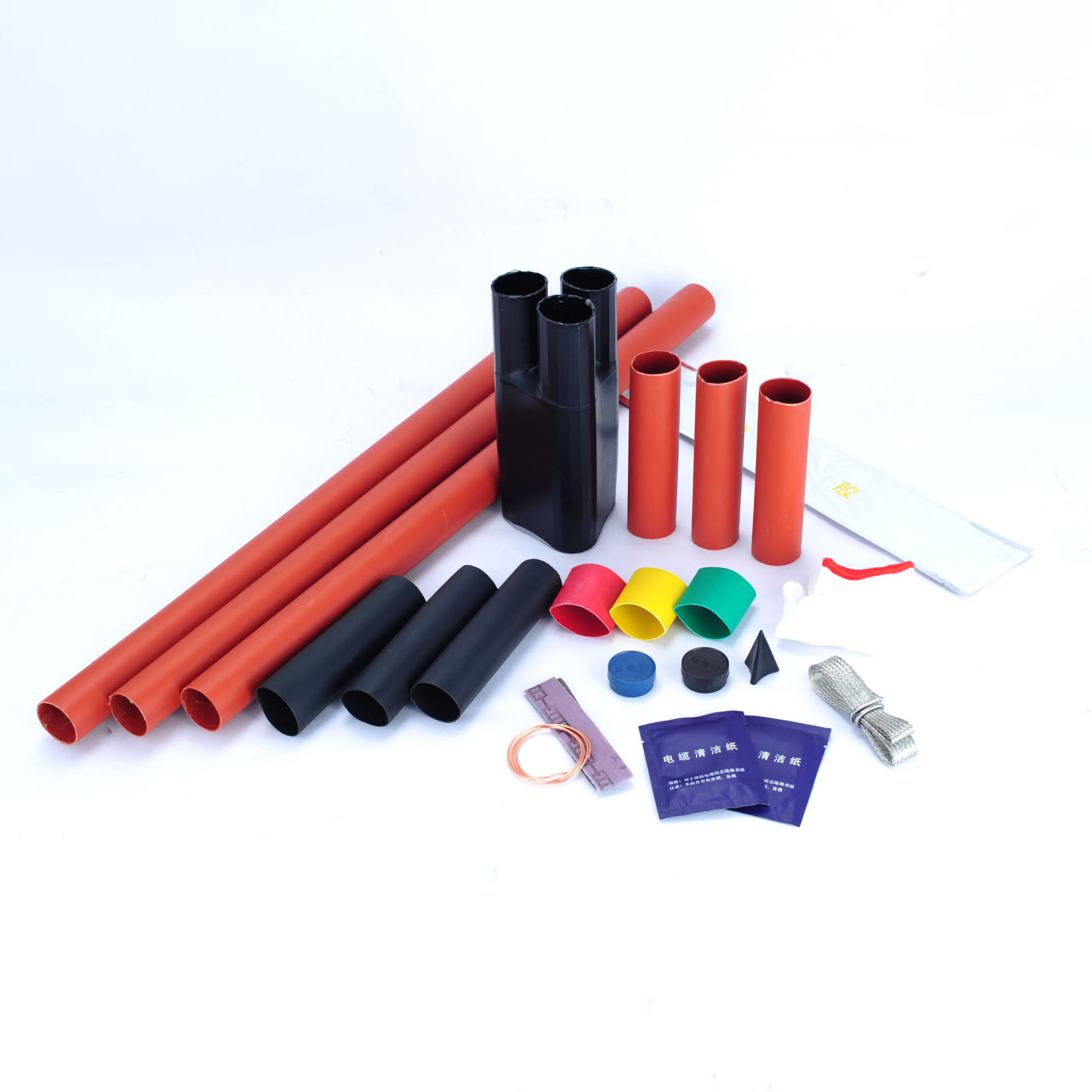

8.7/15kv　Heat Shrinkable Cable Accessories

■8.7/15kv　Heat Shrinkable Cable Accessories■

For 8.7/15kv“PVC”“XLPE” “PILC” Single core and three cores power cable lndoor and outdoor and straight through joint.below-40℃~+80℃ for a long times in addition these accessories have been widely applied to the fieids of power petroleum and chemical industry metallurgy railway port and buiding.

Technical Data

property	Typical data	Evaluation
(kv/1min)power frequency dry-state withst and voltage	45	NO flashover and puncture
(kv/1min)power frequency damp-state withst and voltage	45	NO flashover and puncture
(kv/4h)power frequency long-term withst and voitage	35	NO flashover and puncture
(kv/±10次)Surge withst and voltage	105	ON puncture
(kv/15min)DC withst and voltage	52	NO flashover and puncture
(kv、pc)part discharge	＜20	pass

8.7/15kv　Product Dimensions

size of conductor	Indoor termination		Outdoor termination		Straight through joint
size of conductor	Single core	Three cores	Single core	Three cores	Single core	Three cores
10.16	NSY-10/1.0	NSY-10/3.1	WSY-10/1.0	WSY-10/3.0	JSY-10/1.0	JSY-10/3.0
25.35.50	NSY-10/1.1	NSY-10/3.1	WSY-10/1.1	WSY-10/3.1	JSY-10/1.1	JSY-10/3.1
70.95.120	NSY-10/1.2	NSY-10/3.2	WSY-10/1.2	WSY-10/3.2	JSY-10/1.2	JSY-10/3.2
150.185.240	NSY-10/1.3	NSY-10/3.3	WSY-10/1.3	WSY-10/3.3	JSY-10/1.3	JSY-10/3.3
300.400	NSY-10/1.4	NSY-10/3.4	WSY-10/1.4	WSY-10/3.4	JSY-10/1.4	JSY-10/3.4
