Technical Data

property

Typical data

 Evaluation

(kv/1min)power frequency dry-state withst and voltage

105

NO flashover and puncture

(kv/1min)power frequency damp-state withst and voltage

105

NO flashover and puncture

(kv/4h)power frequency long-term withst and voltage

104

NO flashover and puncture

(kv/±10次)Surge withst and voltage

250

ON puncture

(kv/15min)DC withst and voltage

156

NO flashover and puncture

(kv、pc)part discharge

＜20

pass

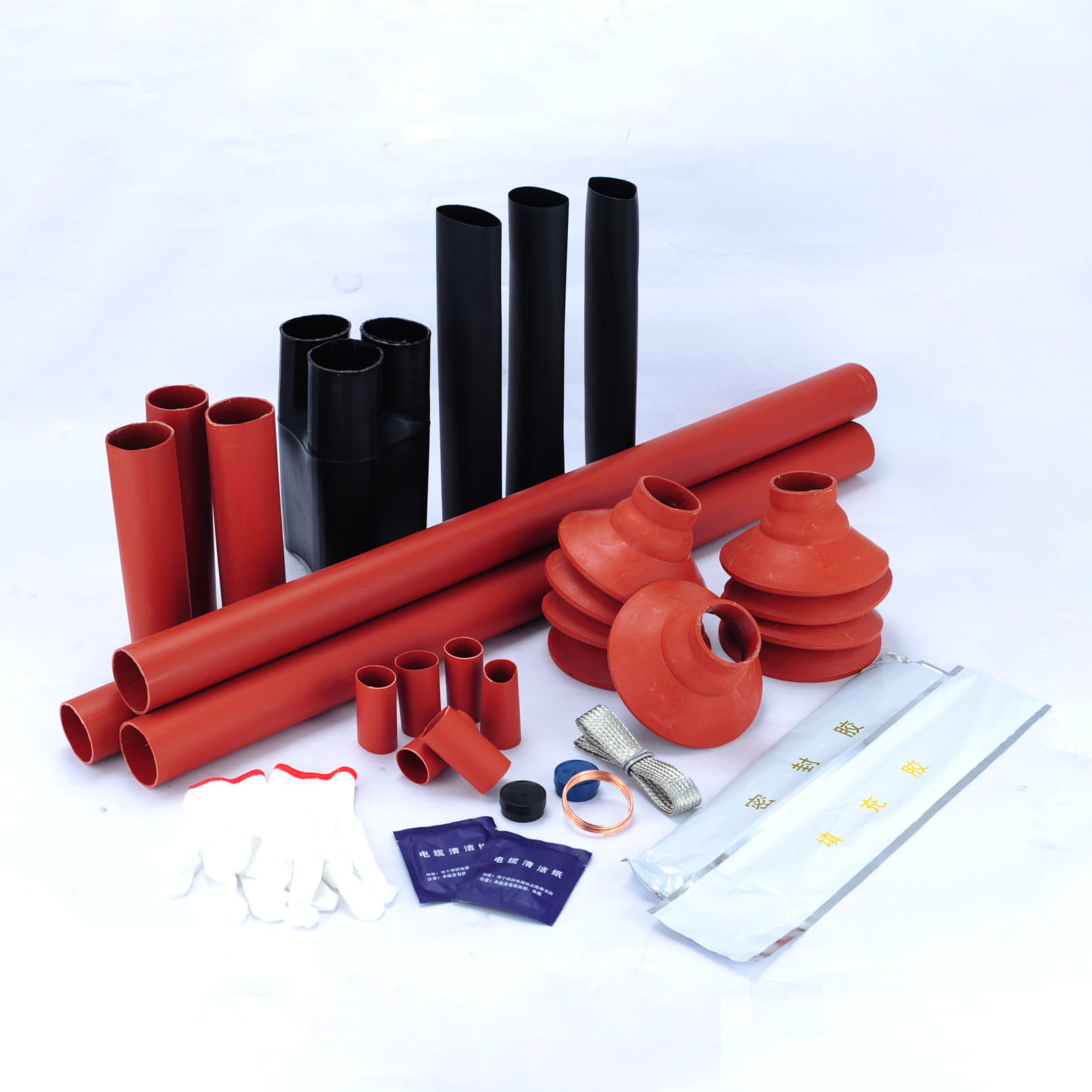

26/35KVProduct Dimensions

mm2
Size of conductor

Indoor termination

Outdoor termination

Straight through joint

Single Core

Three Cores

Single Core

Three Cores

Single Core

Three Cores

25、35、50

NSY-35/1.1

NSY-35/3.1

WSY-35/1.1

WSY-35/3.1

JSY-35/1.1

JSY-35/3.1

70、95、012

NSY-35/1.2

NSY-35/3.2

WSY-35/1.2

WSY-35/3.2

JSY-35/1.2

JSY-35/3.2

150、185、240

NSY-35/1.3

NSY-35/3.3

WSY-35/1.3

WSY-35/3.3

JSY-35/1.3

JSY-35/3.3

300、400

NSY-35/1.4

NSY-35/3.4

WSY-35/1.4

WSY-35/3.4

JSY-35/1.4

JSY-35/3.4
