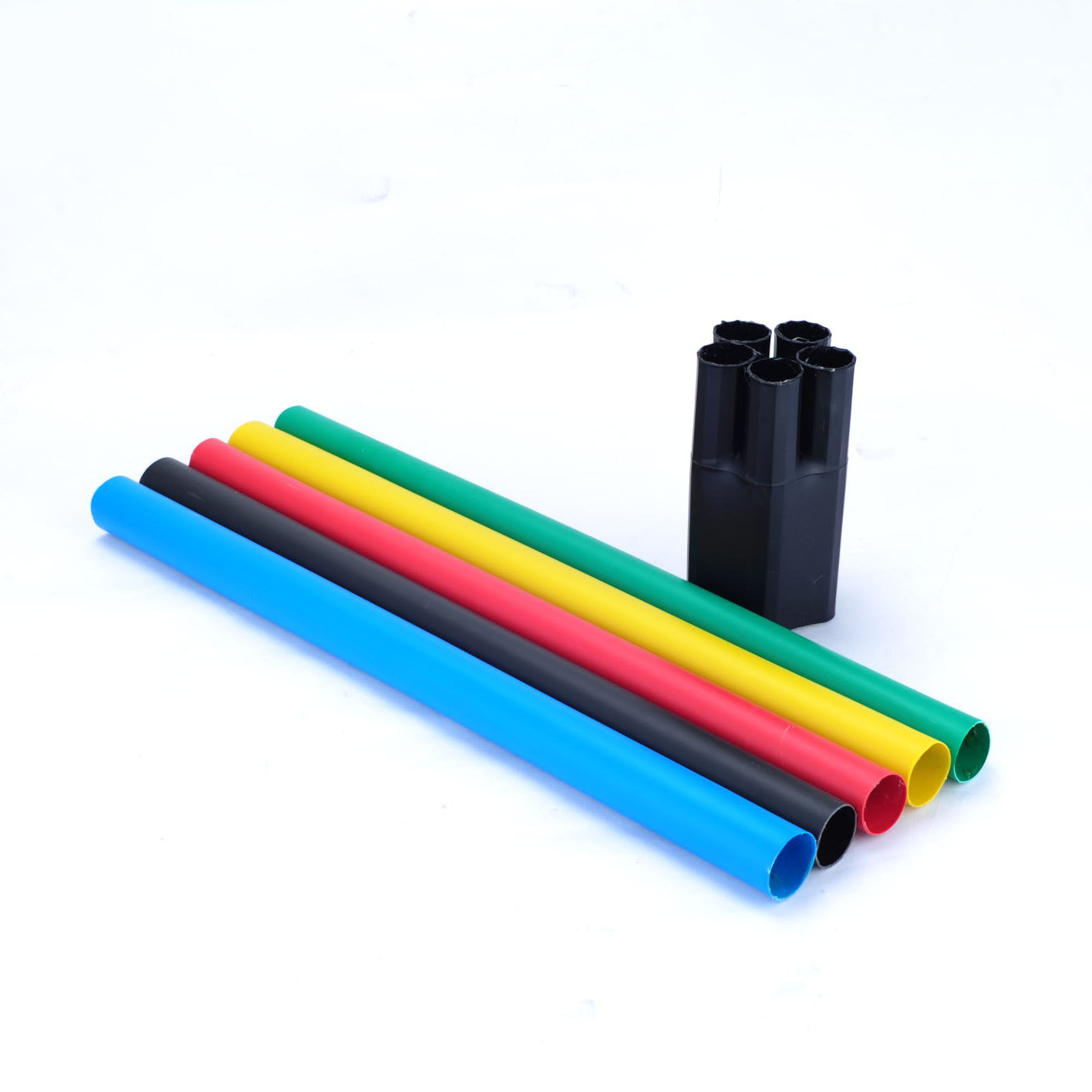

0.6/1kv Heat Shrinkable Cable Accessories

■0.6/1kv Heat Shrinkable Cable Accessories■

    For 0.6/1kv PVC、XLPE 1-core、2cores、3cores、4cores、5cores power cable heat shrinkable termination and straight through joint.

Technical Data

property

Typical data

Property

Typical data

Hardness

80(shoea A)

Ac voltage withstand

2.5kv

Tensite strength

12Mpa

Shrink temperature

120-140℃

Elongation at break

300%

Shrink ration(dia)

250%

Dielectric strength

≥20kv/mm

Longitudinal shrinkable

±5%

0.6/1kvProduct Dimensions

mm2Size of conductor

Applicable cable core

Single Core

Two Cores

Three Cores

Four Cores

Five CORES

Termination kit

10-16

SY-1/1.0

SY-1/2.0

SY-1/3.0

SY-1/4.0

SY-1/5.0

15.35.50

SY-1/1.1

SY-1/2.1

SY-1/3.1

SY-1/4.1

SY-1/5.1

70.95.120

SY-1/1.2

SY-1/2.2

SY-1/3.2

SY-1/4.2

SY-1/5.2

150.185.240

SY-1/1.3

SY-1/2.3

SY-1/3.3

SY-1/4.3

SY-1/5.3

300.400

SY-1/1.4

SY-1/2.4

SY-1/3.4

SY-1/4.4

SY-1/5.4

straight through joint

10-16

JSY-1/1.0

JSY-1/2.0

JSY-1/3.0

JSY-1/4.0

JSY-1/5.0

25.35.50

JSY-1/1.1

JSY-1/2.1

JSY-1/3.1

JSY-1/4.1

JSY-1/5.1

70.95.120

JSY-1/1.2

JSY-1/2.2

JSY-1/3.2

JSY-1/4.2

JSY-1/5.2

150.185.240

JSY-1/1.3

JSY-1/2.3

JSY-1/3.3

JSY-1/4.3

JSY-1/5.3

300.400

JSY-1/1.4

JSY-1/2.4

JSY-1/3.4

JSY-1/4.4

JSY-1/5.5
